Top tips for writing chemical formulae

Introduction

First off, decide if the compound is covalent or ionic. Remember that covalent bonding happens when all the elements in a molecule are non-metals (e.g. carbon dioxide, water, ammonia and methane) while ionic bonding happens between a metal and a non-metal (e.g. sodium chloride, magnesium oxide).

If the compound is COVALENT, it’s all in the name:

Tip 1: For most covalent compounds the clue is in the name

The name starts with the atom at the centre of the molecule, and then tells you how many of the other elements there are. For example:

Carbon monoxide means one carbon and one oxygen atom (CO)
Sulfur dioxide means one sulphur and two oxygen atoms (SO₂)
Nitrogen trioxide means one nitrogen and three oxygen atoms (NO₃)

Tip 2: A handful of exceptions have special names

You just need to remember these few exceptions:

Water (H₂0)
Ammonia (NH₃)
Methane (CH₄), ethane (C₂H₆), propane (C₃H₈) and butane (C₄H₁₀)

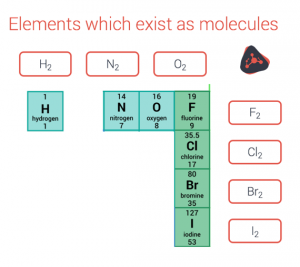

Tip 3: Seven elements exist as molecules

You just need to learn and remember these seven. They are Hydrogen (H₂), Nitrogen (N₂), Oxygen (O₂) and all the halogens: Fluorine (F₂), Chlorine (Cl₂), Bromine (Br₂), Iodine (I₂). Have a look at the diagram below.

______________________________________________________________________________________________

If the compound is IONIC, it’s all about the charges on each ion:

Tip 1: Work out the charge.

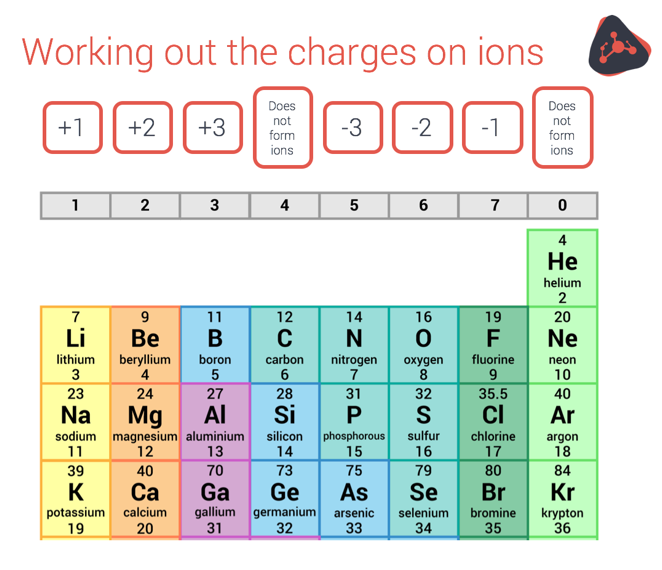

The first step is to work out the charge on the positive ion and the charge negative ion based on how many electrons those atoms gain or lose to get a full outer shell. Use the diagram below to help you.

Note that the noble gases (aka Group 0 or 8) already have a full outer shell, so they are very unreactive and almost always exist as single atoms.

Tip 2: Compounds, like atoms, don’t have an overall charge

Therefore, the charge of the positive ions needs to cancel out the charge of the negative ions.

This is straightforward if the two ions in the compound have the same but opposite charge. For sodium chloride Na⁺ and Cl^– become NaCl and for magnesium oxide Mg²⁺ and O^2- becomes MgO. But if the two ions have different charges you need to use a few more brain cells to work out how many of each ion you need so that the charges cancel out.

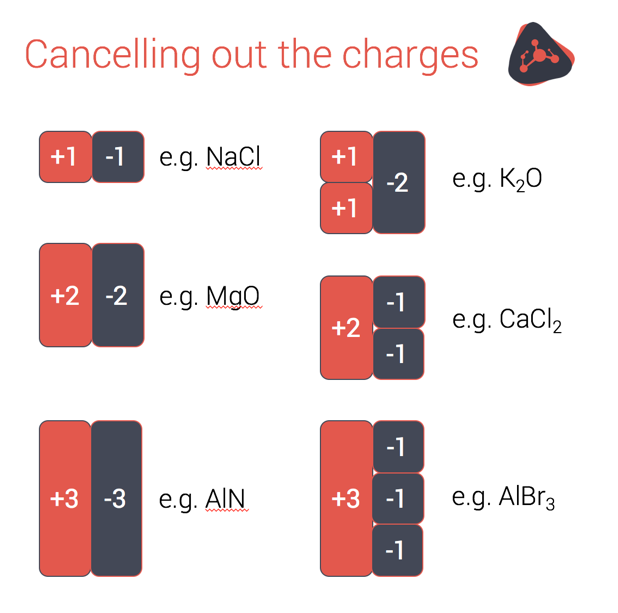

The diagram below shows how it works.

Tip 3: Some ionic compounds involve complex ions

Examples are hydroxide (OH^–), sulfate (SO₄^2-), nitrate (NO₃^–), carbonate (CO₃^2-) and ammonium (NH₄⁺). You just deal with these complex ions in the same way – the aim is to cancel out the positive and negative charges.

But if there is more than one complex ion, you may need to use brackets. For some more advice about this, see our blog post ‘Using brackets in chemical formulae’.

That’s it! Remember these tips, get some practice and writing chemical formulae will never be a problem again.

Ligaya Batten
